These next group of images will demonstrate the range of movement
in the XY Finder
In this image a guidescope is attached to the main telescope. Attached
to the guidescope is the XY Finder,
and attached to the XY Finder is a ST-237A. Notice that the XY Finder
has been adjusted or moved all the way
to the left side. In other words the ST-237A has been moved to the
is the same image as the first one (shown above) but the XY Finder
has been adjusted all the way to the right, in other words the ST-237A
has been moved to the right.

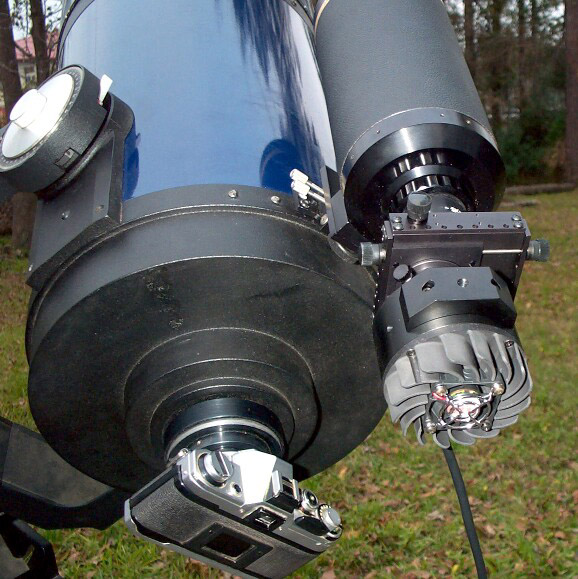

this image we see the same set up as in the previous images, but
now we are looking at the setup from the side. Notice that the XY
Finder has been adjusted all the way down. That is the ST-237A has
been moved down.
image is the same as the one just above, but now the XY Finder has
been adjusted all the up or the ST-237A has been moved up.

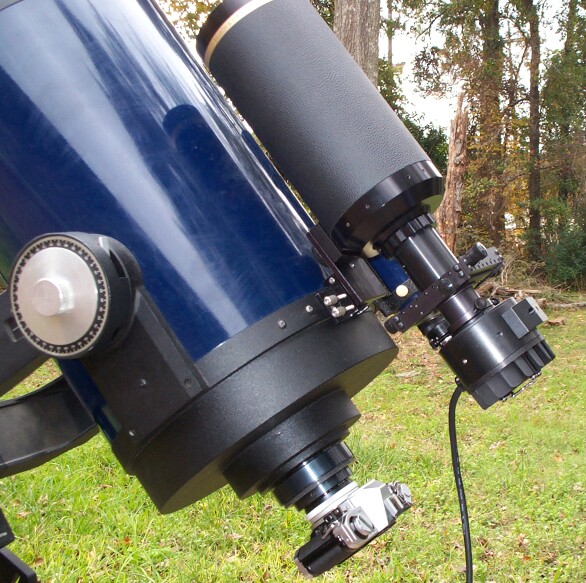

image is a side profile of the XY Finder attached to a guidescope.
A larger image is shown below.

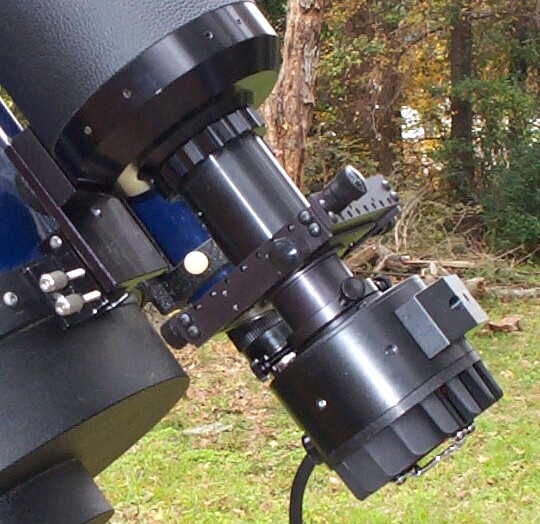

is an enlargement of the one above. Notice that the XY Finder has
a low profile to it, therefore back-focus
is kept as low as possible. In the image above, the XY Finder is
attached with a T-Thread coupler. The XY Finder is threaded onto
the guidescope's rear threads, via a threaded coupler. And the ST-237A
is attached to the XY Finder, via a 1.250" eyepiece port. This
piece (1.250" eyepiece port) has T-Threads. So threaded connections
between the XY Finder and the CCD Camera are possible.
For more info on the dimensions of the XY Finder, please see the
Technical Specs. page
is $259.00 plus $20.00 for Shipping and Handling
Please contact Tau Ceti Co. for delivery times.
NOTE: Design specifications and pricing are subject to change
